Chevrolet Trax: Power Door Locks

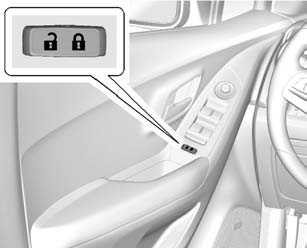

Press
or
to lock or unlock the
doors, tailgate, and if equipped, the
locking fuel door.
If the driver door is open, the driver door and locking fuel door cannot be locked. This can be changed in the Vehicle Settings. See Vehicle Personalization
Delayed Locking
This feature delays the actual locking of the doors until five seconds after all doors are closed.
Delayed locking can only be turned on when the Unlocked Door Anti Lockout feature has been turned off.
When
is pressed on the power
door lock switch with the door open,
a chime will sound three times
indicating that delayed locking is
active.
The doors will then lock automatically five seconds after all doors are closed. If a door is reopened before five seconds have elapsed, the five-second timer will reset once all the doors are closed again.
Press
on the door lock switch
again, or press
on the RKE
transmitter, to override this feature
and lock the doors immediately.
Delayed locking can be programmed through the Driver Information Center (DIC). See Vehicle Personalization
Automatic Door Locks
Automatic Door Lock
When the doors are closed, the ignition is on, and the shift lever is moved out of P (Park) for automatic transmissions, or when vehicle speed becomes faster than 13 km/h (8 mph) for manual transmissions, the doors will lock.
Automatic door locking can be configured. See Vehicle Personalization
Automatic Door Unlock
When the shift lever is moved into P (Park) for automatic transmissions or when the key is removed from the ignition for manual transmissions, the doors will automatically unlock.
See Vehicle Personalization
