DRIVER OR PASSENGER SEAT ADJUSTER SWITCH REPLACEMENT

Fig. 6: Driver or Passenger Seat Adjuster Switch
Fig. 6: Driver or Passenger Seat Adjuster Switch

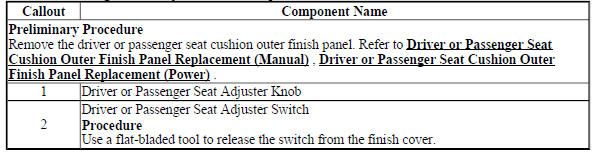

Driver or Passenger Seat Adjuster Switch Replacement

Driver or Passenger Seat Adjuster Switch Replacement

DRIVER SEAT ADJUSTER MEMORY SWITCH REPLACEMENT (ENCORE)

Fig. 7: Driver Seat Adjuster Memory Switch
Fig. 7: Driver Seat Adjuster Memory Switch

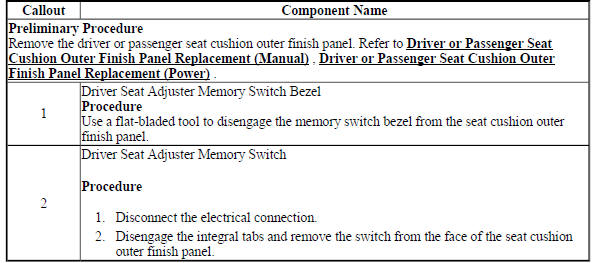

Driver Seat Adjuster Memory Switch Replacement (Encore)

Driver Seat Adjuster Memory Switch Replacement (Encore)

DRIVER OR PASSENGER SEAT ADJUSTER MEMORY MODULE REPLACEMENT (ENCORE)

Fig. 8: Driver Or Passenger Seat Adjuster Memory Module
Fig. 8: Driver Or Passenger Seat Adjuster Memory Module

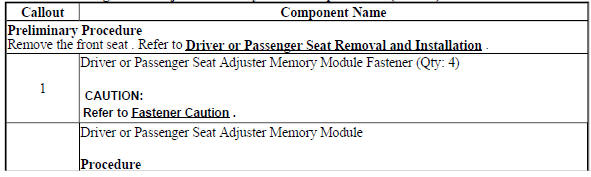

Driver or Passenger Seat Adjuster Memory Module Replacement (Encore)

Driver or Passenger Seat Adjuster Memory Module Replacement (Encore)

Driver or Passenger Seat Adjuster Memory Module Replacement (Encore)

FRONT SEAT TILT ADJUSTER ACTUATOR REPLACEMENT

Fig. 9: Front Seat Tilt Adjuster Actuator
Fig. 9: Front Seat Tilt Adjuster Actuator

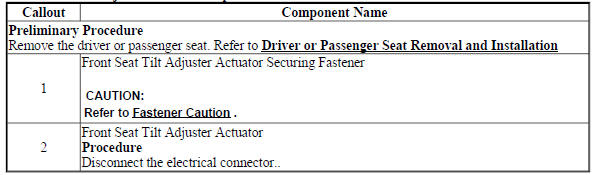

Front Seat Tilt Adjuster Actuator Replacement

Front Seat Tilt Adjuster Actuator Replacement

DRIVER OR PASSENGER SEAT VERTICAL ADJUSTER ACTUATOR REPLACEMENT

Fig. 10: Driver Or Passenger Seat Vertical Adjuster Actuator
Fig. 10: Driver Or Passenger Seat Vertical Adjuster Actuator

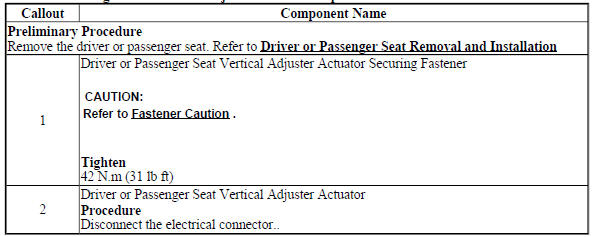

Driver or Passenger Seat Vertical Adjuster Actuator Replacement

Driver or Passenger Seat Vertical Adjuster Actuator Replacement

FRONT SEAT ADJUSTER ACTUATOR REPLACEMENT

Fig. 11: Front Seat Adjuster Actuator
Fig. 11: Front Seat Adjuster Actuator

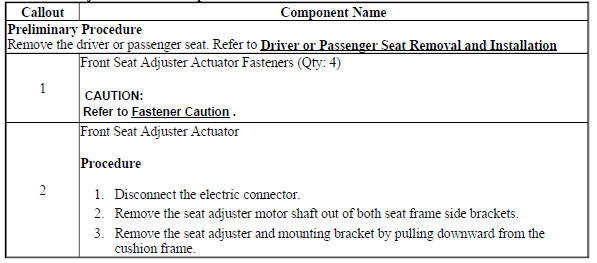

Front Seat Adjuster Actuator Replacement

Front Seat Adjuster Actuator Replacement

DRIVER OR PASSENGER SEAT LUMBAR CONTROL SWITCH REPLACEMENT

Fig. 12: Driver Or Passenger Seat Lumbar Control Switch
Fig. 12: Driver Or Passenger Seat Lumbar Control Switch

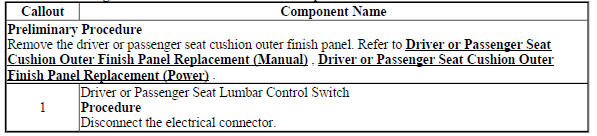

Driver or Passenger Seat Lumbar Control Switch Replacement

Driver or Passenger Seat Lumbar Control Switch Replacement
